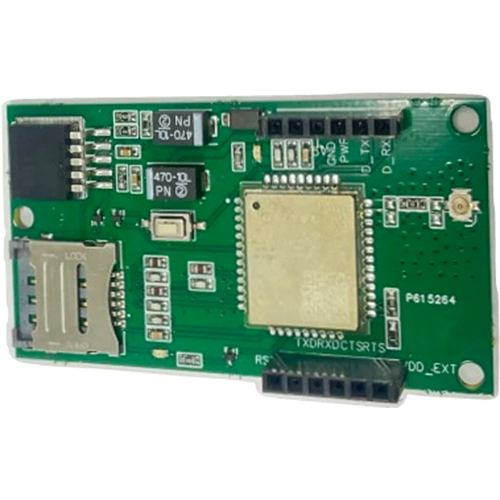

Quectel EC200 Industrial Grade 4G-2G Module

Product Description

The OLUS Quectel EC200 series is an industrial-grade 4G LTE module optimized for IoT and M2M applications, offering a range of variants tailored to different regional needs, including the EC200U-CN for China/India and EC200U-EU for Europe, Middle East, and Africa. It supports LTE Cat 1 networks, with download speeds of up to 10 Mbps and upload speeds up to 5 Mbps, making it suitable for moderate-speed data applications. This series provides seamless migration from 4G to 2G ensuring easy adaptability for ongoing projects requiring cellular upgrades. The EC200 series modules come with variant equipped with advanced features including GNSS (Global Navigation Satellite System) support, a range of interface options like UART, USB 2.0, and I2C, and it supports protocols commonly used in IoT, such as TCP/UDP, MQTT, and HTTP.

1. Wide Network Compatibility:
   • Supports 4G LTE Cat 1, 3G, and 2G networks, allowing smooth transition from older networks and ensuring broad connectivity.
2. High Data Transfer Rates:
   • LTE Cat 1 with 10 Mbps downlink and 5 Mbps uplink, providing efficient data transfer for IoT applications requiring moderate speeds.
3. Industrial-grade Reliability:
   • Designed for operating temperatures from -35C to +75C, extended to -40C to +85C for challenging environments.
4. Multiple Interfaces:
   • Includes USB 2.0, UART, I2C, and SPI for versatile device integration.
5. GNSS Support (Optional):
   • GPS, BeiDou, Galileo, and GLONASS for precise location-based applications.
6. Low Power Consumption:
   • Optimized power profiles including deep sleep and idle modes, suitable for battery-powered applications.
7. Firmware Over-The-Air (FOTA):
   • Remote firmware updates to keep devices up-to-date in field deployments.
8. Enhanced Security:
   • Supports secure protocols like HTTPS and SSL for data security in IoT applications.

Technical Specifications

• Dimensions: 69 mm x46.5 mm
• Voltage Requirements: 3.34.3V, typical 3.8V
• Temperature Range:
  • Standard: -35C to +75C
  • Extended: -40C to +85C
• Data Rates:
  • LTE Cat 1: 10 Mbps downlink / 5 Mbps uplink
  • GSM: 85.6 kbps (DL & UL)
• Protocols:
  • TCP, UDP, PPP, MQTT, HTTP, HTTPS, SSL, FTP, and more
• Certifications:
  • CE for Europe, SRRC/NAL/CCC for China, RCM for Australia/New Zealand
• Power Consumption:
  • Ultra-low power mode at 12 A (Power off), and 1.7 mA in LTE sleep mode

This module is well-suited for applications in POS systems, asset tracking, remote monitoring, industrial automation, and smart metering, making it a versatile and robust option for industrial IoT.
